Microsoft Dynamics 365 CRM (Dataverse) Security Configuration using New Modern UI

By | April 28, 2023

Microsoft Dynamics 365 has introduced a new feature with the latest release. To control data access and protect sensitive data, we are encouraged to apply security roles to users.

You can now assign security roles using the new modern UI, though the legacy UI is still available to change security roles.

To access the Modern UI, navigate to the Power Platform Admin Center and the target environment.

From there, you must open Settings à Users + Permissions à Security Roles (Preview).

Opening this, you will see a list of security roles under this page, open a security role, and from the new Modern UI as shown in the screenshot below, you can edit it ahead.

To make the configuration easy and filter the tables, use the dropdown highlighted in the screenshot below. You can filter the tables and display only those with permissions assigned or not assigned.

New Modern UI

With so many tables in the system, it is hard to find a specific table in the legacy UI. To prevent this, you can search a table by name to find a result in the grid, and the permissions for which could be changed.

New Modern UI

Similarly, you can search by table privilege name, as seen in the screenshot below.

New Modern UI

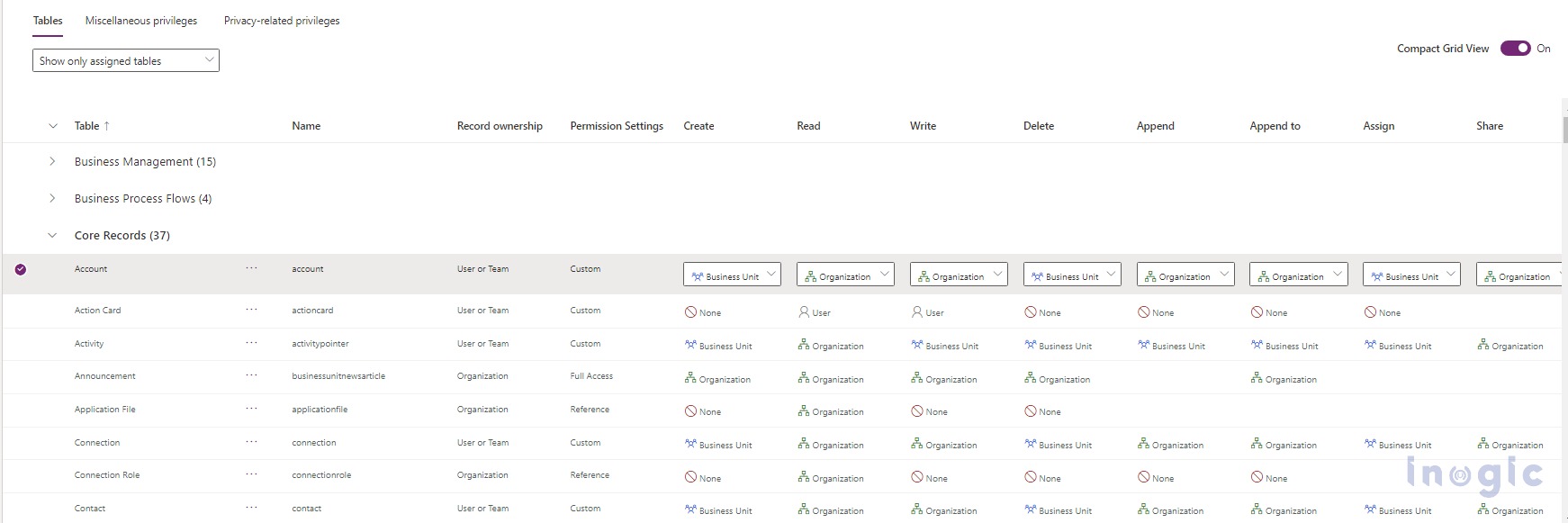

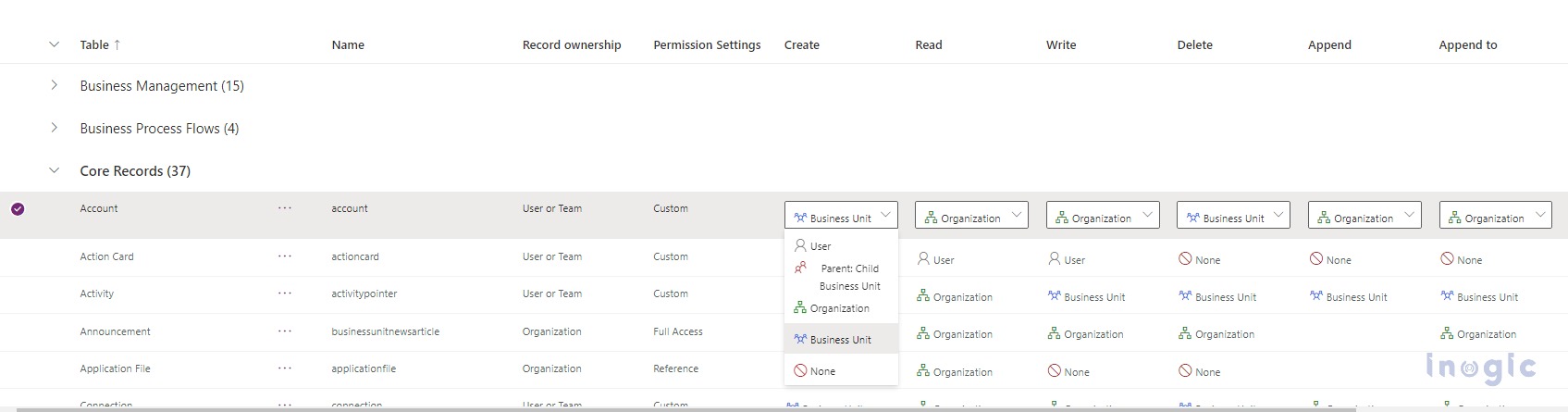

You can edit security role privileges in two ways. The first is to directly edit the table permissions in the grid itself, as seen below.

New Modern UI

For each table, you can use another option of Permission Settings to expedite security configuration. The only thing you need to do is click on the ellipses(…) in a row and select Permission Settings.

New Modern UI

This will open a selection pane on the right side where you will see predefined groups of permissions and assign them to the tables.

New Modern UI

The old UI required the user to configure permissions for each table individually for each security role. Now with the new UI, you can copy permission settings from one table and apply them to multiple tables at once, saving you.

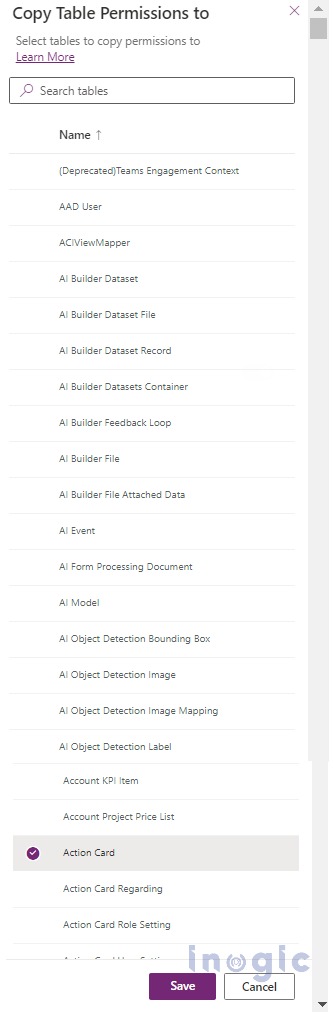

You can do this by clicking the ellipses(…) in a table row and selecting Copy Table Permissions.

New Modern UI

New Modern UI

Before:

New Modern UI

After copying Table permissions from the Account table to the Action Card table:

New Modern UI

Conclusion

The new Modern UI is not only User Friendly but also speeds up the security configuration with promising features as explained above
